$413.20Formfutura Platinum LCD Series is a general-purpose photopolymer LCD resin that is specifically developed to work with all open source LCD and DLP 3D printers in the range of 385 - 420nm. Our Platinum LCD resin is almost odorless and 3D prints with extremely high accuracy and a very smooth surface finish. The Platinum LCD Resin series is developed to 3D print with relatively short curing times.
Key features
Vivid colors with an extremely high level of colorfastness

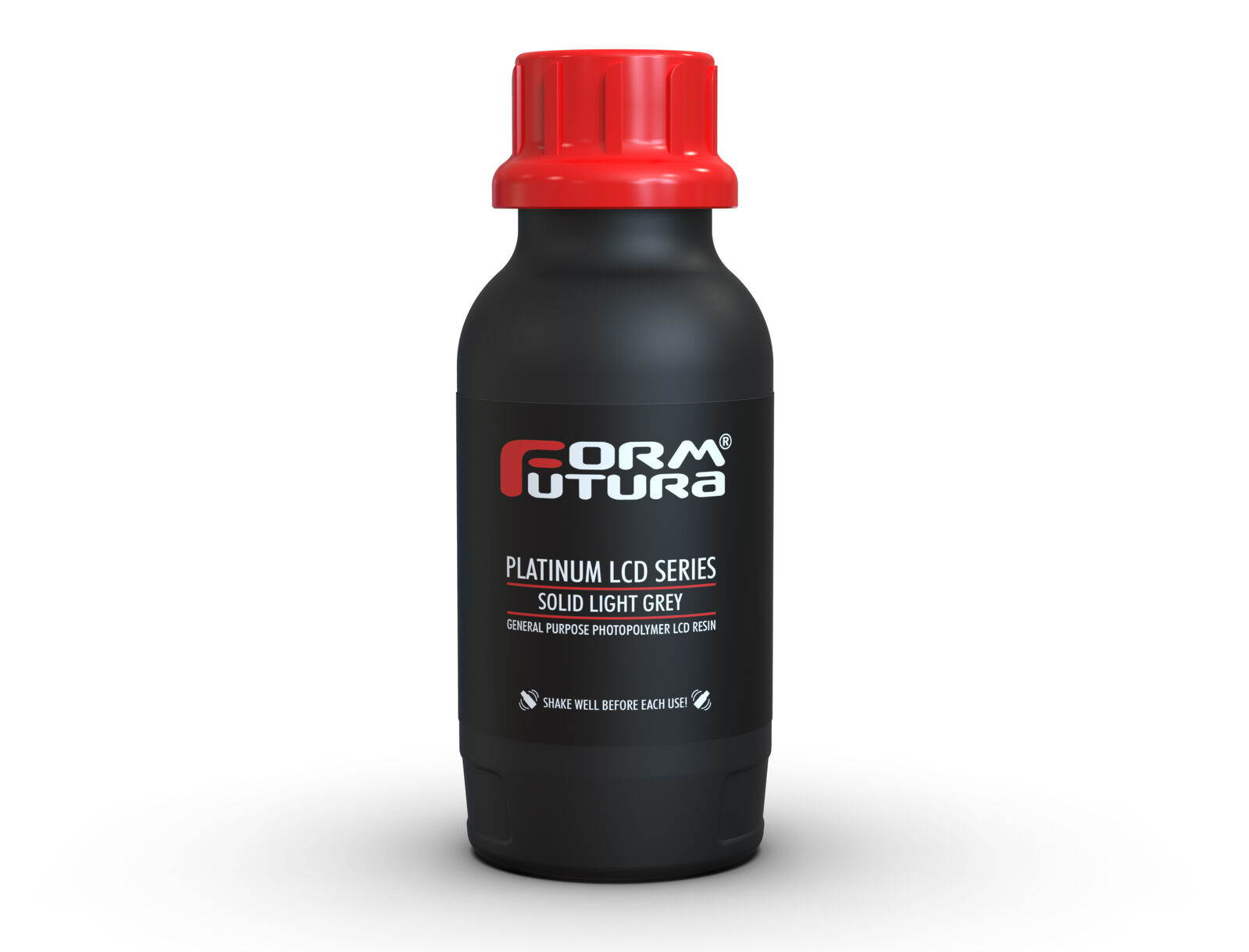

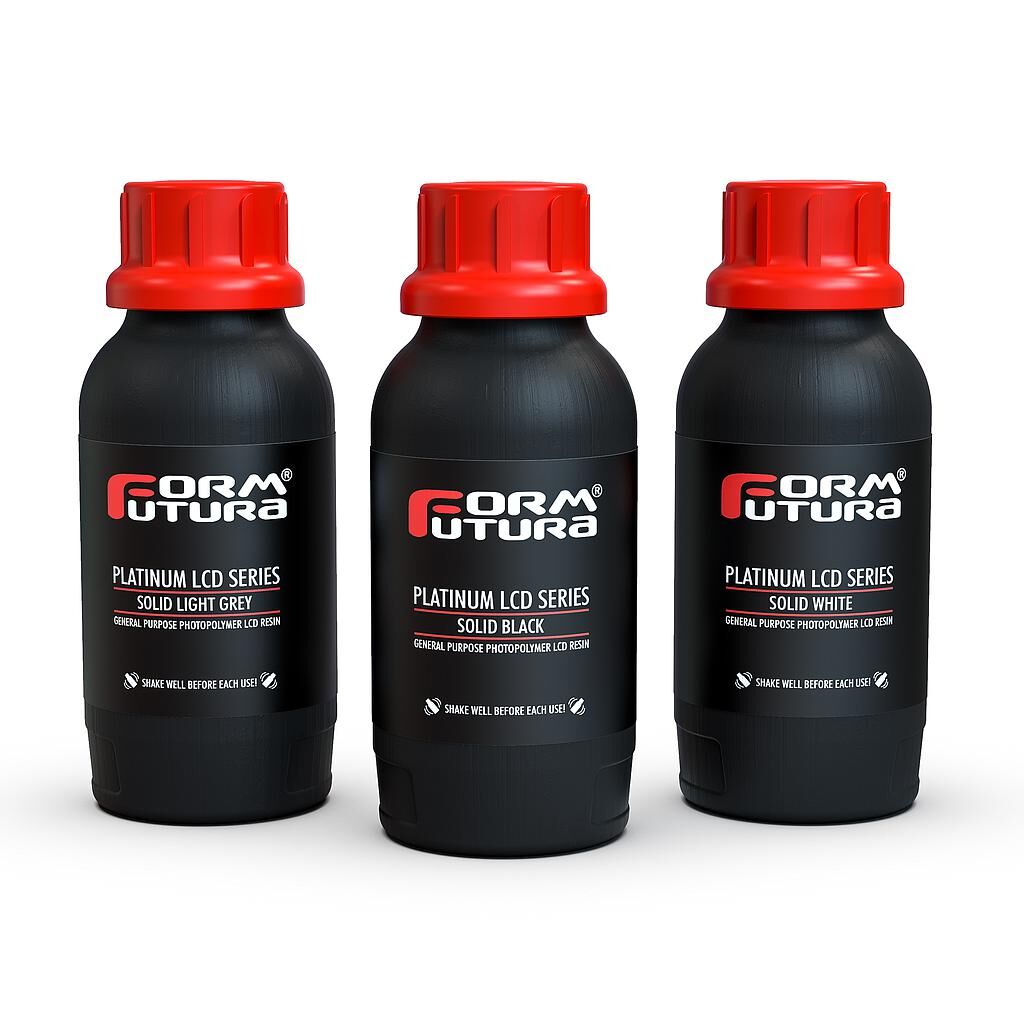

The Platinum LCD Series - Solid - Resin Pack contains theSolid Black,Solid White,Solid Light Greyresins ( 500g each)
Applications
Resin properties (uncured liquid)
Mechanical properties
Test method on post cured objects through 10 minutes high power mercury curing.
| Properties | Typical Value | Test Method |
|---|---|---|
| Glass transition temperature (Tg) | 51C | ASTM D7028 |
| Water absorption | 0.4% | ASTM D570-98 |
| Impact strength (IZOD notched) | 18 J/m | ASTM D256A |
| Tensile strength | 45 MPa | ASTM D638M |
| Tensile Modulus | 1000 MPa | ASTM D638M |
| Elongation at break | 8% | ASTM D638M |
| Flexural Strength | 66 MPa | ASTM D790M |
| Flexural Modulus | 1800 MPa | ASTM D2240 |
| Shore D Hardness | 82 | ASTM D2240 |
Please note that the above-displayed values can vary with individual machine processing, post-curing parts, geometry, print orientation, print settings, and temperature.
Preparation(s) before starting to print
After shaking the bottle, leave the resin to rest for 10 minutes to let air bubbles get out of the resin
General printing guidelines
Base Curing Times at 50 micron
Post-processing
We do advise you to post-process your 3D print in order to achieve the material properties
An ultrasonic cleaner is preferred/recommended
Place the rinsed parts in a well-ventilated area for at least 30 minutes, or use pressurized air for at least 2 minutes
Safety
Please always be aware that when 3D printing with resins that you are working with chemicals and that you should always be cautious and use the personal protective equipment as stipulated in our safety data sheets.
Product export information
| HS Code: 2916140090 | Description:Resin for 3D Printing | Country of origin:the Netherlands |
